The centre on the non towable and the heavy duty mobile pivot are manufacture as a 4 legs and 3 legs mobile centre. The Kimberley pivot mobile pivot lets you spread the cost of the system over more hectors, making automated irrigation more affordable than ever. The tripod is made to irrigate fields from 22 ha and more the heavy duty unit is towed from one field to another by a wheel mounted same (same as on the towers) tripod point.

 The 4 leg centre is made from 80 x 80 x  6mm angle iron with 50 x 50 x 6 angle cross bracings available in a 165mm and 219mm centre feed pivot points.

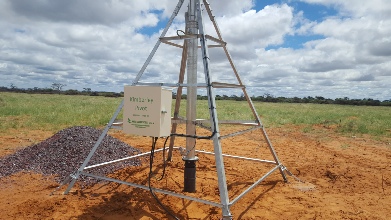

 4 Legged heavy duty centre:

4 Legged Heavy duty pivot

<< Return to catagory page

3 wheel heavy duty pivot


Vertical pipe quick tow centre pivot


3 wheel heavy duty pivotVertical pipe quick tow centre pivot

You may also like

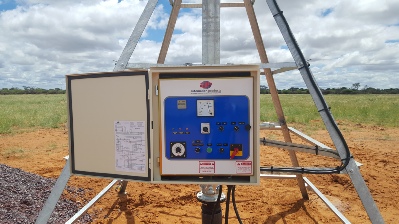

 Main control boxes

Tower boxes on all centre pivots

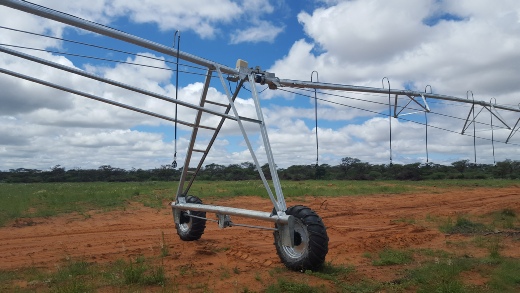

Towers

Each Tower consists of 2 standard wheel gearbox ratios (Ratio of 50:1) and (2 x 8, 5" x 16") pivot tyres. The Centre drive gearbox is also standard power saver with a ratio of 40:1 water driven pivot use a standard 30:1 C " Face type gearbox with a spindle.

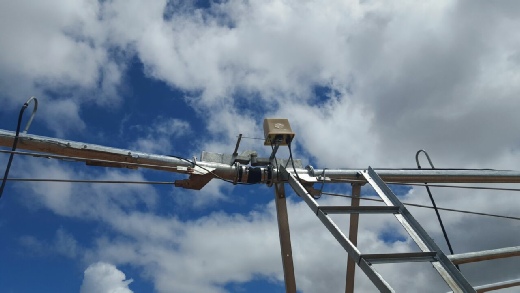

Multi Directional Flex joint:

Not only flexes up and down and back and forth, it can also twist to accommodate tension stresses, common on rough ground.  This flexibility is a principal reason why the Kimberley pivot will operate on slopes of up to 30%.  The flex joint is designed to eliminate costly replacement and maintenance; it is not subject to wear, common with expensive metal to metal couplings.  If a hose must be replaced, it is a simple, low cost operation.

Structural Stability:

The Truss rods are designed to absorb tension and provide maximum support for the pipeline. Unlike most, the

Kimberley pivot truss rods are slotted and welded on all 4 sides for maximum strength to assure rigid strong spans.

We widened the distance between the truss rods thereby lowering the machine's overall centre of gravity.

Maintenance

As all parts are manufactured in South Africa, they are readily available from our factory in Kimberley as well as from our distributors.  Electrical components are also locally manufactured and always available.

Service at its best

A centre pivot is a major investment - designed and made to work for you by WA Services for years to come.  However, no matter how good an irrigation system is, there will come a time when it needs servicing - sometimes when your crop needs water. We do not only sell Kimberley pivots we know them inside out. Should something go wrong we are on top of it immediately as we know how important it is to keep your pivot operating.  We will do everything possible to keep your Kimberley pivot operating, no matter what the problem is or where you are located.


WA Services manufacturing reserves the right to discontinue models at any time or to change specifications, design or accessories without notice and incurring obligation.  Photographs and illustrations do not necessarily indicate the year in which machines were made.  Comparisons based on information available at time of printing.
